Mixed-unit hybrid life cycle assessment applied to the recycling of construction materials

Abstract

The construction industry contributes around 18% of greenhouse gas emissions, 40% of depletion of natural resources, and 25% of wastes globally. To reduce these impacts, construction industries can adopt low-carbon alternatives for construction materials and waste minimisation strategies, including the recycling of construction and demolition waste. However, a comprehensive understanding of the full life cycle carbon profile of low-carbon and recyclable construction materials is required to accurately assess the efficacy of decarbonisation strategies in the built environment. Despite recent progress in hybrid life cycle assessment (hybrid LCA) methods, some weaknesses remain with respect to the inherent uncertainty relating to price variations and aggregated sectors that are unable to provide detailed waste-specific information in hybrid LCA. Furthermore, attributional, hybrid LCA for a functional unit does not reflect the actual, economy-wide physical flows of materials in a real economy. In this study, a mixed-unit hybrid LCA approach based on a combination of process life cycle inventory, input–output, and material flow data is used to model the economy-wide potential use of recycled construction materials in Australia. A comparison between methods of life cycle emissions of geopolymer concrete revealed that the mixed-unit hybrid LCA approach produced a more accurate and Australian-specific result. The usefulness of the proposed mixed-unit IO model is demonstrated through quantifying the cradle-to-gate embodied emissions of recycled construction materials and by-products utilised in concrete and steel sectors in Australia. The results yield a 1% reduction when recycled concrete aggregate completely replaces natural aggregate in both ordinary Portland cement and geopolymer concrete. Greenhouse gas emissions reduction of 30% is quantified for geopolymer concrete using recycled concrete aggregate compared with ordinary Portland cement concrete utilising natural aggregate and 43% is estimated for electric arc furnace route using iron and steel scrap compared with basic oxygen furnace route. The method merges physical and monetary units of industrial systems related to low-carbon alternatives and recycled construction materials to enable the calculations of embodied carbon with improved accuracy. The results of this study can help inform decarbonisation strategies in the built environment sector.

1 Background

The construction industry is responsible for about 18% of greenhouse gas emissions (GHGE), 40% of depletion of natural resources, and 25% of wastes worldwide (Ding 2014; Yu et al. 2017). Hence, it is important that sustainable alternatives and practices are explored in order to reduce the industry’s environmental impacts. Low-carbon alternatives for construction materials and waste minimisation strategies, such as recycling construction and demolition (C&D) waste, are ways for the construction industry to contribute to a more sustainable development in the wider economy. However, only a comprehensive quantitative evaluation can assess whether the actual benefits of low-carbon and recycled construction materials are realised if the whole life cycle of all processes is taken into account. One of the main disadvantages of input–output table (IOT) is that it does not consider the end-of-life phase, which includes recycling (Nakamura and Nansai 2016). Therefore, a suitable method is needed to capture the full, economy-wide carbon profile of alternative construction materials and practices.

The most widely used method to assess the impacts of construction materials is process-based life cycle assessment (LCA). LCA provides material-specific data, but suffers from having an incomplete system boundary, which can lead to an underestimation of the impacts assessed (Crawford 2008; Crawford et al. 2018; Wan Omar et al. 2014). On the other hand, input–output analysis (IOA) offers economy-wide system boundary completeness, based on inter-industry monetary flow data, but has limitations relating to price variability, sector aggregation, and the lack of material-specific data (Dixit 2017; Säynäjoki et al. 2017).

In a pure monetary input–output table (MIOT), the direct and indirect interdependencies of sectors are captured in monetary units (e.g. dollars), and monetary data are readily available. However, as the prices of physical products vary between different sectors, the assumption that the physical quantity transactions between sectors are proportional to their monetary values leads to an erroneous allocation of environmental impacts in the standard MIOT model (Lenzen 2000; Vendries Algarin et al. 2016). Furthermore, economies of scale means that the per unit monetary value of production outputs vary with their physical quantities (Bullard and Herendeen 1975).

The issue of price variability and heterogeneity can be avoided by replacing monetary units with actual material production and consumption flows in physical units. Physical input–output table (PIOT) is expressed only in physical units, showing the flows of physical products across sectors and their interaction with the environment, as well as accounting for waste flows (Giljum and Hubacek 2004; Hoekstra and van den Bergh 2006). PIOT is superior in representing mass flows, but is instead unable to capture monetary flows in the economy for service-based sectors. Data to construct PIOT are also often scarce, conflicting, and labour-intensive, resulting in a limited number of aggregated tables constructed with low resolution (Altimiras-Martin 2014).

In addition to price variation, other reasons for differences in results between MIOT and PIOT approaches, as identified by Giljum and Hubacek (2004), Liang and Zhang (2013) and Weisz and Duchin (2006), include assumptions relating to unique sector prices, level of sector aggregation, the models’ capability of dealing with service sectors, accounting for waste, and estimating residential consumption. Hence, the selection of an appropriate unit type is an important decision.

A ‘hybrid’ approach constitutes either the utilisation of both monetary and physical units, or the amalgamation of process and input–output (IO) data (Suh et al. 2004). With the former, information gaps can be completed with the more suitable data type (e.g. unit mass for raw materials, and unit dollar for services). The removal of the price conversion step in calculating commodity costs also reduces inaccuracies associated with methods of approximation. In terms of data, process-based life cycle inventory (LCI) data provide specific sector resolution and physical ingredients for the manufacture of a product, whilst economy-wide IO data capture the monetary inter-dependencies of industry sectors, and economy-wide material flow analysis (MFA) data capture the total quantity of material flow used by an industry sector.

The confluence between combining physical with monetary units and amalgamating process LCI, IO and material flow data (Fig. 1) leads to the mixed-unit hybrid life cycle assessment (MU-hLCA) framework (Hawkins et al. 2007; Hawkins 2007), which can be seen as equivalent to the integrated hLCA in Suh (2004). The advantage of this method is that it combines the precision of process-based MFA, the detailed sector resolution of LCI, and the comprehensiveness of IOA. It adds missing upstream supply chains to the MFA component, whilst also resolving the price variability issue by introducing physical units into the model. By doing so, all phases of the product life cycle including the use, disposal, and recycling stages can be examined. To date, various mixed-unit input–output table (MUIOT) approaches have been used, including extended IO models for energy and emissions (Mayer and Flachmann 2011), integrated hLCA to track heavy metals sectors (Hawkins et al. 2007; Hawkins 2007), ecological IOA in modelling energy and material flows through an industrial system (Bailey et al. 2004), and multi-layered MUIOT, which utilises the mass, energy, and monetary layers (Majeau-Bettez et al. 2016).

Fig. 1

Relationship of methods and proposed methodology of MU-hLCA (EW-MFA economy-wide material flow analysis)

In this study, MU-hLCA is employed in a case study on geopolymer concrete (GPC) and compared to published results from process-based and IO-based methods. The usefulness of MU-hLCA is demonstrated through its application in modelling an economy-wide potential use of recycled construction materials in Australia. The proposed model merges physical and monetary units of industrial systems related to construction materials and their recycled substitute products in order to enable the calculations of embodied carbon and the tracking of material flows with improved accuracy. The results of this study will help inform decarbonisation strategies in the built environment sector.

This study is the first to model recycled construction materials on an economy-wide scale via a MU-hLCA framework that utilises Australian-specific LCI and IO databases. The novel features of this study are described in the implementation steps taken as outlined below:

• 1. modelling recycled construction materials in a MU-hLCA framework;

• 2. economy-wide scale use of specific materials;

• 3. use of an Australian-specific database (AusLCI 2015) in the MU-hLCA framework; and.

• 4. applying a decomposition method adapted from Wiedmann (2017) for process, products and industries.

The concrete case study from Teh et al. (2017) is advanced in this study to quantify life cycle embodied emissions of concrete and steel incorporating recycled construction materials.

2 Application of MU-hLCA

2.1 Aim and scope

The goal of this study is primarily to compare the results of the MU-hLCA approach with that of input–output-based hybrid life cycle assessment (IO-hLCA) and LCA using GPC as a case study. Secondly, the application and the usefulness of the MU-hLCA method are demonstrated through modelling the use of recycled materials and by-products in concrete and steel, specifically via comparing the carbon footprint intensity (CFI) in the following scenarios:

• 1. Ordinary Portland cement concrete (with natural aggregate) versus ordinary Portland cement concrete (with recycled concrete aggregate);

• 2. Fly ash-based GPC concrete (with fly ash, slag, and natural aggregate) versus fly ash-based GPC concrete (with fly ash, slag and recycled concrete aggregate); and

• 3. Basic oxygen furnace steel versus electric arc furnace steel (with iron and steel scrap).

2.2 Modelling recycling of construction waste

It is vital for the construction industry to recycle C&D waste as the industry consumes a large amount of natural resources. C&D waste accounts for approximately 40% (19 Mt) of total solid waste in Australia (47 Mt) (Hyder Consulting 2011a, b; Productivity Commission 2006), of which 45% is disposed to the landfill and 55% is recycled (Hyder Consulting 2011a) (in 2008–2009). The C&D waste stream is composed of masonry materials (concrete, bricks, asphalt, etc.), metals (steel, non-ferrous, etc.), organics, paper and cardboard, plastics, glass, leather and textiles, tyres and hazardous substances. Masonry waste (which includes concrete, bricks, asphalt, etc.) constitutes the greatest proportion in the C&D waste stream at 89% (15 Mt), but only 62% (9 Mt) is currently being recycled (Hyder Consulting 2011a). In comparison, metal constitutes only around 20% (951 kt) of the C&D waste, but has a much higher recycling rate of 87% (831 kt) (Hyder Consulting 2011a). Concrete and steel are chosen as case studies because (1) global aggregate production has doubled from 21 to 40 Gt (from 2007 to 2014) leading to a growing issue of scarcity in landfill space and aggregates (Tam et al. 2018; Torres et al. 2017), and (2) concrete and steel are major contributors to climate change, each accounting for 56 and 6% of 30 Mt of Australian building products produced annually (Miller et al. 2015).

Impacts of construction materials that incorporate recycled products have been assessed with process-based LCA in many studies, for example concrete (Braunschweig et al. 2011; Kleijer et al. 2017; Knoeri et al. 2013; Marinković et al. 2010; Shan et al. 2017; Tošić et al. 2015) and steel (Burchart-Korol 2013; Norgate et al. 2007; Olmez et al. 2016). At the same time, few studies have used IO-based hLCA (Choi et al. 2011; Kucukvar et al. 2014; Teh et al. 2017; Wijayasundara et al. 2017a). Kucukvar et al. (2014) combined process-based LCA with IOA to assess the onsite impacts and higher order supply chain impacts of recycling, incineration and landfilling of C&D waste. Wijayasundara et al. (2017a) compared the embodied energy of recycled aggregate concrete and natural aggregate concrete in Australia using the IO-based hLCA method. Choi et al. (2011) analysed the economic impact of localised e-waste recycling using an extended IO model by (2) reconstructing the IO table and satellite environmental account to describe e-waste recycling sectors, and (2) monetising physical e-waste flows in a consistent manner. So far, no studies have been conducted using MU-hLCA to model an economy-wide scale of recycled construction materials.

One of the disadvantages specific to the application of recycled products in the IO framework is that waste is an aggregated sector, which is labelled “Waste collection, treatment and disposal services” in the Australian IOT, and does not provide detailed, waste-specific information. Recycling industries and their accompanying products are also not captured in detail and are sometimes represented as part of the main waste sector (Choi et al. 2011). Secondly, waste services are rendered in monetary units, i.e. in terms of service fees, and do not equate to the actual physical amounts of waste generated (Liang and Zhang 2013).

A framework known as the waste input–output (WIO) model, which specifically analyses waste types and treatment flows using an extended IOT method, was developed by Nakamura and Kondo (2002, 2009). Using the WIO model, Nakamura and Kondo (2006) evaluated the economic and environmental impacts of waste treatment methods and recycling of electrical appliances in Japan. The WIO model was subsequently applied to calculate waste multipliers and footprints in Australia (Fry et al. 2016; Lenzen and Reynolds 2014; Reynolds et al. 2014). This study offers an alternative approach, by using a MU-hLCA framework where waste flows can be represented in physical units, and specific products including, but not limited to, by-products and recycled products can be distinguished without necessitating the manual disaggregation of IO sectors. This is because the process table already contains disaggregated flows with the resolution to represent specific products. The framework is compiled by integrating a comprehensive Australian-specific LCI database with a monetary supply-and-use table (SUT) in order to draw information regarding the physical input recipe and the associated emissions of producing a single unit of waste or recycled product. Physical MFA data (that represent the quantity of economy-scale flows of waste or recycled products) replace monetary flows in the IOT in the downstream cut-off (C^d) matrix (refer to S3.1.3) that connects the IOT with the LCI database, and the missing upstream inputs are filled in the upstream cut-off (C^u) matrix (refer to S3.1.4) (Fig. 5).

2.3 Application of MU-hLCA to recycled construction materials

2.3.1 Recycled concrete aggregate and by-products used in concrete

In Australia, concrete waste is recycled as recycled aggregate (RA) and is most commonly utilised in unbound applications including road sub-base, pavement, drainage and landscaping (Net Balance 2012). Concrete waste recycling process involves crushing, sorting and screening that are processed on the construction site itself or transported to other processing sites to produce RA (Tam 2009; Tam et al. 2018). Recycled concrete aggregate (RCA) is RA that is used to replace natural (coarse) aggregate (NA) in new concrete. Of the 6 Mt of concrete waste that is recycled in Australia (Net Balance 2012), only a small amount (0.5 Mt) is used in bound applications as RCA, such as in new low-strength, non-structural concretes (CCAA 2008; Tam et al. 2018). The potential of replacing NA with RCA in fly ash-based GPC has also been studied by Galvin and Lloyd (2011) and Limbachiya et al. (2012), who recommended that a 30% RCA replacement rate is ideal to avoid adversely impacting the physical properties of fly ash-based GPC. By-products such as fly ash (FA) and ground granulated blast furnace slag (GGBFS) from coal and steel production that would otherwise be sent to the landfill can also be reused as ingredients for GPC, which is a low-carbon alternative to ordinary Portland cement (OPC) concrete.

Although there are numerous benefits of recycling C&D waste (for instance the reduction of waste disposal and thus the need for landfill space, and the conservation of natural resources), currently no RCA is used in high-grade structural applications in Australia (Wijayasundara et al. 2016) and only 1% is used worldwide (Tošić et al. 2015). This is because the utilisation of RCA in structural applications is currently not supported by existing Australian technical and performance standards (Berndt et al. 2013; CSIRO 2002; Tam et al. 2013), and it is known to have lower quality and strength attributes compared to NA (Senaratne et al. 2017). Hence, there is potential for increasing the use of RCA in concrete applications, such as in the production of different concrete types and in various structural applications.

2.3.2 Iron and steel scrap

Metal waste, which is predominantly composed of steel, has a high recycling rate because of its profitability. In Australia, more than 50% of metal scrap is exported (ACOR 2015; Corder et al. 2015). According to Hyder Consulting (2009), around 89% (2.5 Mt) of steel waste is recycled and the rest (0.3 Mt) is landfilled in Australia. A study by Golev and Corder (2016) showed that although the reported metal scrap recycling rates are high, i.e. in the range of 80–90%, actual metal recycling rates are estimated to be below 70% when losses and end-of-life product dissipation are taken into account.

The recycling of steel involves the processes of collecting, sorting, shredding, and separating different types of scrap metals (Björkman and Samuelsson 2014). In the electric arc furnace (EAF) fabrication of steel products, iron and steel scrap are the primary inputs (ACOR 2015), along with pig iron, electricity as the main energy source, coke, fluxes, and cryogenic gases. The proportion of scrap utilisation in steel-making is estimated to be around 93% for EAF and around 5% in blast furnace–basic oxygen furnace (BF-BOF) production in Australia (Energetics 2012). The production of steel via the EAF route increased from 18% in 2003 to 23% in 2012 in Australia (Golev and Corder 2016) and currently accounts for approximately 30% of global steel output (Yellishetty et al. 2010). A detailed study by Golev and Corder (2016) estimated that currently in Australia, crude steel comprises 20–30% of recycled material content. Emissions can be reduced by recycling steel, given that it is a versatile material that can be recycled and reused efficiently and indefinitely.

3 Method and data

3.1 Construction of MU-hLCA matrix

The MU-hLCA method connects a top-down IOT matrix with a comprehensive bottom-up LCI process matrix through the C^u and C^d matrices (Fig. 5).

3.1.1 Process matrix and process environmental extension matrix

The process matrix and the process-based environmental extension matrix utilised in this study (referred to as the “process system” and indicated by the subscript _p) is from the Australian Life Cycle Inventory database (AusLCI 2015), which captures 4463 processes and four selected environmental extensions, including direct emissions of methane (CH₄), nitrous oxide (N₂O), carbon dioxide (CO₂), and carbon dioxide equivalents (CO₂-eq).

The preparation of the process coefficient matrix (I–A_p) for Eq. 3 comprises a procedure that normalises the LCI database and the associated environmental extension data to reflect the physical functional flows and the process emission intensity (f_p) for the fabrication of one functional unit of product or process. The consumption of inputs is represented as negative values whilst the production of outputs are represented as positive values. Finally, the normalised functional units (represented by a series of 1 s) are placed on the diagonal of the process coefficient matrix.

3.1.2 Input–output matrix and associated GHGE extension matrix

The IO matrix and IO environmental extension matrix used for this study (referred to as the “IO system” and indicated by the subscript _IO) is the same two-region SUT framework used in Teh et al. (2017), which in turn is based on data from the Australian Industrial Ecology Virtual Laboratory (IELab) (Lenzen et al. 2014, 2017). It comprises 341 industries, 345 products, 26 rest-of-the-world (RoW) sectors, and four environmental extensions representing direct emissions of CH₄, N₂O, CO₂, and CO₂-eq for the year 2009. The SUT framework is adopted because of its ability to capture industry and product detail that enables the allocation of co-products to an industry.

The IO sectors listed below have been disaggregated and replaced with specific process data in previous studies (Teh et al. 2017; McIlvin 2015) to reflect detailed construction materials, which are represented as blue lines and dots in Fig. 5:

• Cement: Selected IO data in the “Cement” sector was replaced with process data for OPC (Teh et al. 2017).

• Concrete: The “Ready-mixed concrete and mortar” sector was disaggregated into six types of concrete with varying incorporated proportions of OPC, FA and GGBFS as well as FA-based and GGBFS-based GPC (Teh et al. 2017). The concrete types used in this study are “100% OPC 50 MPa concrete” (referred to as OPC concrete) in S4.2.1 and “90% FA/10% GGBFS Geopolymer 50 MPa concrete” (referred to as FA-based GPC) in S4.1 and S4.2.1.

• Steel: The “Other steel and iron manufacturing” sector was disaggregated into “BOF steel manufacturing” and “EAF steel manufacturing” sectors (McIlvin 2015).

The technology coefficient (A_IO) matrix is first calculated by dividing each transaction (x _ij ) in the T matrix by the total industry output (X _j ), and then deducted from the identity (I) matrix to yield the “I–A_IO matrix” for Eq. 3. The direct intensity multipliers (f_IO) vector expressed in kg of GHGE per $ (AUD) is obtained by dividing the IO environmental extension vector (E _j ) by the total industry output (X _j ).

3.1.3 Downstream cut-off matrix

The C^d matrix captures the physical amount of products produced by the processes that are distributed to the IO system (Peters and Hertwich 2006; Suh 2006). The C^d matrix is derived by “dividing the annual sales of functional flow—in physical units that are relevant to each functional flow—by the production of each total commodity.” (Suh 2004, p. 459)

For instance, this study models the material flow of RCA replacing NA, which is labelled “Gravel” in the IO system, in the production of concrete. This is done by allocating the total annual physical amount of RCA, which is used by the “100% OPC 50 MPa concrete” column sector in the background IO system, to the “Recycling brick rubble and concrete, at plant/AU U” row in the process system, and then dividing it by the annual sales of the concrete sector. This calculation step produces the corresponding cell input $a_{hj}^{{{\bf{C}}^{\text{d}} }}$ (Eq. 1) and is expressed in kg/$, which represents the technology coefficient of RCA (Fig. 2). Subsequently, $a_{ij}^{\bf{IO}}$ (Eq. 2), which is the sales coefficient of product row “Gravel” in the “100% OPC 50 MPa concrete” industry sector column in the use table is adjusted (set to zero in this case) to avoid double counting (Fig. 2). Adjustments in the final demand vectors need to be made accordingly. However, since there is no final demand for RCA or gravel, no further corrections were necessary in this case.

$$a_{hj}^{{\bf{C}^{\text{d}} }} = \frac{{x_{hj}^{{\bf{C}^{\text{d}} }} }}{{X_{j}^{\bf{IO}} }}$$

(1)

$$a_{ij}^{\bf{IO}} = \frac{{\left( {x_{ij}^{\bf{IO}} - x_{hj}^{{{\bf{C}}^{\text{d}} }} } \right)}}{{X_{j}^{\bf{IO}} }}$$

(2)

In this example, row h is the product RCA, row i is the product NA, and column j is the concrete industry sector: $a_{hj}^{{{\bf{C}}^{\text{d}} }}$  = technology coefficient matrix element (a) of row h and column j (in the C^d matrix; measured in kg/$); $a_{ij}^{\bf{IO}}$  =modified sales coefficient matrix element (a) of row i and column j (in the IO system; measured in $/$), in a case where a virgin material (from the IO system) is completely replaced by a recycled material (from the process system); $x_{hj}^{{{\bf{C}}^{\text{d}} }}$  = physical amount of product h used by sector j (in the C^d matrix; measured in kg); $x_{ij}^{\bf{{IO}}}$  = monetary amount of product i purchased by sector j (in the IO system; measured in $); $X_{j}^{\bf{IO}}$ = total industry output of sector j (measured in $).

Fig. 2

Technology coefficient matrix elements in the C^d and A_IO matrix, in a case where product i is replaced by product h in j industry sector (Eqs. 1 and 2)

The resolution of the detailed functional flows specified in the process system is useful for recycled products (e.g. RCA, iron and steel scrap), by-products (e.g. FA and GGBFS), and specific chemicals [e.g. sodium hydroxide (NaOH) and sodium silicate (Na₂SiO₃)] that are not individually reflected in the aggregated IO system. For this study, the C^d matrix is populated with physical economy-wide material flow data of the following, which are represented as red dots in Fig. 5:

• FA, GGBFS, NaOH, and Na₂SiO₃ for the “90% FA/10% GGBFS Geopolymer 50 MPa concrete” sector for S4.1;

• RCA for the “100% OPC 50 MPa concrete” sector for S4.2.1;

• RCA, FA, GGBFS, NaOH and Na₂SiO₃ for the “90% FA/10% GGBFS Geopolymer 50 MPa concrete” sector for S4.2.1; and

• Iron and steel scrap for the “BOF steel manufacturing” and “EAF steel manufacturing” sectors for S4.2.2.

The concrete material flow data for C^d matrix is shown in Figs. 3 and 4 using STAN (Brunner and Rechberger 2004; Cencic and Rechberger 2008). Steel material flow data is based on Energetics (2012, Fig. 5). An example of calculating C^d with a matrix of eight processes, three industries, and five product sectors is available in the form of an Excel sheet and MATLAB script in supplementary information (SI) provided in Teh and Wiedmann (2017).

Fig. 3

MFA of concrete production in Australia for 2008–2009 in kt/year

Fig. 4

MFA for concrete production types used in this study in kt/year

Fig. 5

Example graphical representation of MU-hLCA used in this study. (Note: red dots represent material flow data of recycled and specific products in C^d, and red columns represent selected IO upstream data in C^u as per this study (refer to Additional file 1 for red columns). Blue lines are disaggregated concrete and steel sectors, whilst blue dots represent process data introduced in previous work (McIlvin 2015; Teh et al. 2017). Numbers in brackets represent numbers of rows and columns.)

3.1.4 Upstream cut-off matrix

The C^u matrix complements the process system by adding any absent higher upstream monetary input data from IO flows to the process system (Suh 2004). The full procedure to construct the C^u matrix is employed from Wiedmann et al. (2011, Supplementary Information) to completely fill the C^u matrix in this study.

For this study, selected processes in the C^u matrix are replaced with IO sales coefficients (A_IO) of relevant Australian industry sectors from the use table of the IO system, which are then adjusted via multiplication with the Australian unit price of a functional unit of the process inventory employed. This represents the total cost of input process required to produce 1 kg functional unit of a process. To avoid double counting, all upstream inputs that are already accounted for in the process inventory employed are removed from the column vector. The unit price (AUD/kg) of FA, GGBFS, NaOH, and Na₂SiO₃ from Teh et al. (2017, Supplementary Information, Table A.3) are applied in this study. The prices of RCA and iron and steel scrap are obtained from Tam (2008) and ABARES (2010).

If technology coefficients data are absent in the IO system for a particular product, price-weighted coefficients need to be assembled from monetary data. For RCA, the Australian concrete recycling cost data is sourced from Tam (2008, Table 2), which is then assigned to a corresponding IO product sector. The technology coefficients vector is calculated by dividing each recycling cost in proportion to the total annual cost of concrete recycling. The price-weighted coefficient is then computed by multiplying the cost of 1 kg of RCA (0.02 AUD/kg from Tam (2008)) with the technology coefficients vector. Lastly, inputs that are already accounted for in the “Recycling brick rubble and concrete, at plant/AU U” AusLCI process inventory (Grant 2015) are deleted to avoid double counting. Selected processes for this study in the C^u matrix are represented as red columns in Fig. 5 and described in Additional file 1.

3.2 Methods

Total impact multipliers (m_MUH) from MU-hLCA are calculated according to Eq. 3 (Hawkins et al. 2007; Suh 2004, 2011), whereby the first row vector (f_MUH) represents the direct intensity multipliers of the process and IO system, whilst the second matrix (I–A_MUH)⁻¹ represents the Leontief inverse (Leontief 1970) of the process, C^u, C^d and IO system. The total impact multipliers (m_MUH) are referred to as CFI in the results and discussion section. For an example of m_MUH calculation, see SI provided in Teh and Wiedmann (2017).

$${\mathbf{m}}_{\text{MUH}} = {\mathbf{f}}_{\text{MUH}} \left( {{\mathbf{I}} - {\mathbf{A}}_{\text{MUH}} } \right)^{ - 1} = \left[ {\begin{array}{*{20}c} {{\mathbf{f}}_{\text{p}} } & {{\mathbf{f}}_{\text{IO}} } \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {{\mathbf{I}} - {\mathbf{A}}_{\text{p}} } & { - {\mathbf{C}}^{\text{d}} } \\ { - {\mathbf{C}}^{\text{u}} } & {{\mathbf{I}} - {\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right]^{ - 1}$$

(3)

where m_MUH = row vector of CFIs, consisting of [m_p m_IO] (where m_p is measured in kg CO₂-eq/kg; dimension: 1 × 4463) and m_IO is measured in kg CO₂-eq/$; dimension: 1 × (341 + 345 + 26)); f_p = process system environmental extension vector for GHGE (measured in kg CO₂-eq/kg; dimension: 1 × 4463); f_IO = direct intensity multiplier vector of the IO system for GHGE (measured in kg CO₂-eq/$; dimension: 1 × (341 + 345 + 26)); I–A_p = process coefficient matrix (A_p) deducted from the normalised functional unit (measured in kg/kg; dimension: 4463 × 4463); –C^d = downstream cut-off matrix (measured in kg/$; dimension: 4463 × (341 + 345 + 26)), where seven matrix elements are introduced in C^d in this study, shown in Fig. 5; –C^u = upstream cut-off matrix (measured in $/kg; dimension (341 + 345 + 26) × 4463), where the whole C^u matrix is filled in this study, shown in Fig. 5; I–A_IO = IO technology coefficient matrix (A_IO) deducted from the identity matrix (I) (measured in $/$; dimension: (341 + 345 + 26) × (341 + 345 + 26)).

To recognise impacts from LCI processes, IO industries, and IO products, a method to decompose total impact multipliers tailored for MU-hLCA was developed based on a method by Wiedmann (2017). “Decomposition of integrated hybrid life cycle inventories by final-stage inputs” is applied as per Eq. 4, which distinguishes the contributions of direct and indirect emissions from industries, products and processes (Teh and Wiedmann 2017). This method shows the life cycle impacts originating from specific products used in the C^d matrix (e.g. RCA, FA, NaOH).

$${\mathbf{M}}^{ifsi} = {\hat{\mathbf{f}}}_{\text{MUH}} + {\hat{\mathbf{m}}}_{\text{MUH}} . {\mathbf{A}}_{\text{MUH}}$$

(4)

where ${\hat{\mathbf{f}}}_{\text{MUH}}$  = diagonalised direct emissions of the process system (f_p) (measured in kg CO₂-eq/kg) and the IO system (f_IO) (measured in kg CO₂-eq/$) shown in Eq. 5;

$${\hat{\mathbf{f}}}_{\text{MUH}} = \left[ {\begin{array}{*{20}c} {{\hat{\mathbf{f}}}_{\text{p}} } & 0 \\ 0 & {{\hat{\mathbf{f}}}_{\text{IO}} } \\ \end{array} } \right]$$

(5)

${\hat{\mathbf{m}}}_{\text{MUH}}$  = diagonalised total impact multipliers of the process system (m_p) (measured in kg CO₂-eq/kg) and the IO system (m_IO) (measured in kg CO₂-eq/$) shown in Eq. 6; equivalent to diagonalised m_MUH from Eq. 3;

$${\hat{\mathbf{m}}}_{\text{MUH}} = \left[ {\begin{array}{*{20}c} {{\hat{\mathbf{m}}}_{\text{p}} } & 0 \\ 0 & {{\hat{\mathbf{m}}}_{\text{IO}} } \\ \end{array} } \right]$$

(6)

A_MUH = mixed-unit coefficient matrix of the MU-hLCA, calculated by deducting (I − A_MUH) from the I matrix (measured in kg/kg, kg/$; $/kg, $/$), shown in Eq. 7 (Peters and Hertwich 2006).

$${\mathbf{A}}_{\text{MUH}} = {\mathbf{I}} - \left( {{\mathbf{I}} - {\mathbf{A}}_{\text{MUH}} } \right) = {\mathbf{I}} - \left[ {\begin{array}{*{20}c} {{\mathbf{I}} - {\mathbf{A}}_{\text{p}} } & { - {\mathbf{C}}^{\text{d}} } \\ { - {\mathbf{C}}^{\text{u}} } & {{\mathbf{I}} - {\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {{\mathbf{A}}_{\text{p}} } & {{\mathbf{C}}^{\text{d}} } \\ {{\mathbf{C}}^{\text{u}} } & {{\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right]$$

(7)

4 Results and discussion

The results calculated via Eq. 3 are expressed as CFI per unit of construction material, and denote the cradle-to-gate life cycle amount of GHGE represented as CO₂-eq (sum of CO₂, CH₄ and N₂O). The decomposition of CFI identifies the major sources of GHGE originating from industries, products and processes along the supply chain of construction materials. S4.1 presents the CFI results of MU-hLCA compared with process-based LCA (Davidovits 2015; Turner and Collins 2013) and IO-hLCA (Teh et al. 2017) using GPC as a case study. S4.2.1 and S4.2.2 are application studies of MU-hLCA for recycled construction materials used in concrete and steel, respectively. The same concrete mix-designs for 1 m³ of concrete used in Teh et al. (2017, Supplementary Information, Table A.2) are applied in the “100% OPC 50 MPa concrete” industry sector in S4.2.1 and in the “90% FA/10% GGBFS Geopolymer 50 MPa concrete” industry sector in S4.1 and S4.2.1. For S4.2.2, the same process inputs for steel used by McIlvin (2015, Table 13 and 20) based on Ecoinvent data are applied in the “BOF steel manufacturing” and the “EAF steel manufacturing” industry sectors, which use 5 and 74% of recycled iron and steel scrap, respectively. Numerical results for all figures are provided in Additional file 1.

4.1 Method comparison

The process-based LCA methodology presents a CFI of 170 kgCO₂-eq/m³ (Davidovits 2015; Turner and Collins 2013). When other inputs not covered by LCA are included from the IO sectors, CFI more than doubles to 345 kgCO₂-eq/m³ for IO-hLCA (Teh et al. 2017) and increases to 364 kg CO₂-eq/m³ for MU-hLCA (Fig. 6). The major disparity can be seen in the allocation of embodied emissions to FA and GGBFS. In the LCA study (Turner and Collins 2013), the contribution of FA was 11 kgCO₂-eq/m³, because only post-production emissions of FA including “capture, milling, grinding, drying and transport” were considered, and no GGBFS was used in the LCA study.

Fig. 6

Contributions of main GHGEs for FA-based geopolymer concrete production by MU-hLCA, IO-hLCA, and LCA methodologies

In this MU-hLCA study, a higher result of 19 kgCO₂-eq/m³ is calculated for GGBFS compared to IO-hLCA. This is because by-products are allocated based on physical units, and they represent Australian-specific production and emission patterns, which have been adopted from AusLCI. In the instance of GGBFS, the main inputs accounted for are mixing, energy, plant use and transportation. This is a more accurate analysis because it takes into account the international and local transportation of GGBFS, of which are 80% imported from Japan (ABS 2013). In the previous IO-hLCA study (Teh et al. 2017), GGBFS was calculated to contribute 7 kgCO₂-eq/m³, because it was aggregated into the 26-sector RoW table and thus assumed to be entirely produced locally, ignoring any impacts associated with importing from abroad.

For FA, a lower result of 26 kgCO₂-eq/m³ is calculated in this study compared to IO-hLCA. In AusLCI, FA is considered as waste and only local transportation is accounted for. For a more accurate analysis, missing upstream emissions of electricity generation are taken into account by allocating the “Electricity generation” IO technology coefficient sector to the FA process (detailed procedure described in S3.1.4 and Additional file 1). The contribution of upstream emissions from electricity generation and other upstream supply chains is given in Fig. 7. The emissions of FA increased from 7 kgCO₂-eq/m³ (when only the C^d matrix is populated with data) to 26 kgCO₂-eq/m³ (when both the C^u and C^d matrices are populated with data). In contrast, FA contribution was 109 kgCO₂-eq/m³ due to its high average price, with a sensitivity range of − 32 to + 10% based on variances in FA market prices in the previous IO-hLCA study (Teh et al. 2017). Via economic allocation, emissions were assigned according to monetary values between electricity generation and FA based on estimated prices. FA was introduced in the IOT by creating new columns and rows because it was not represented in the IOT. Although upstream impacts were accounted for, the IOT sectors were aggregated and the results were sensitive to price variability.

Fig. 7

Contributions of upstream and downstream cut-off matrix for FA-based geopolymer concrete production using MU-hLCA

Contributions of Na₂SiO₃ and NaOH calculated using MU-hLCA (119 and 61 kgCO₂-eq/m³) are higher compared to using IO-hLCA (57 and 32 kgCO₂-eq/m³) and LCA (45 and 34 kgCO₂-eq/m³) (shown in Fig. 6). It is noted that consistently across all methods, Na₂SiO₃ and NaOH are identified as the main contributors of GHGE in the production of GPC. Other studies also confirm that either Na₂SiO₃ or NaOH is the biggest emitter in GPC production (Davidovits 2015; Habert et al. 2011; McLellan et al. 2011). This study has incorporated all modifications involving the conversion of Na₂SiO₃ and NaOH from dry weight into 45% wt solution form for feedstock.

The higher value of MU-hLCA is due to the use of Australian-specific data (e.g. local energy mix) and the selection of specific chemical production methods from AusLCI. For Na₂SiO₃ production in Australia, the furnace process is used to melt sodium carbonate and silica sand to produce solid Na₂SiO₃, which is then dissolved in water to produce liquor Na₂SiO₃ (Turner and Collins 2013). Production of NaOH is done via the chlor-alkali process, whereby electrolysis converts sodium chloride brine solution to chlorine and NaOH (Turner and Collins 2013). The membrane cell production method is employed by primary NaOH manufacturing companies in Australia (CoogeeChemicals 2016; Orica 2016). Habert and Ouellet-Plamondon (2016) discussed that the energy mix employed in the NaOH production influences the environmental impact data more than the type of production (e.g. membrane cell). Specific methods for the production of “Sodium silicate, furnace liquor, 37% in H₂O, at plant/RER U/AusSD U” and “Sodium hydroxide, 50% in H₂O, membrane cell, at plant/RER U/AusSD U” are employed from AusLCI in the process system. The previous IO-hLCA study (Teh et al. 2017) has a few gaps, namely that chemical types were aggregated in the “Other basic chemical manufacturing” industry sector, specific diluted chemical solutions could not be distinguished and their conversion to monetary units was problematic. Missing upstream inputs from “Other basic chemical manufacturing” and other upstream supply chains to Na₂SiO₃ and NaOH in the C^u matrix contributed to an increase of 38 and 11 kgCO₂-eq/m³, respectively (Fig. 7). It should be noted that the Na₂SiO₃ and NaOH processes in AusLCI are derived from the “shadow database”, meaning that whilst some significant processes such as those relating to energy and transport are Australian data, the remaining inputs are from the international Ecoinvent database. Hence, there is room for data improvement to achieve more accurate results.

In conclusion, the hLCA methodologies led to a higher GHGE of 100–114% compared to the LCA approach due to their system boundary completeness. Although the results of the hLCA methods vary only slightly (18 kgCO₂-eq/m³), MU-hLCA yields a more accurate outcome due to (1) the high resolution and country-specific process and IO data available, (2) economy-wide material flow data, (3) the utilisation of physical units to represent by-products and specific chemical products, and (4) an economy-wide system boundary. The drawbacks of IO-hLCA, including the price variability issue, proportionality and homogeneity assumptions, and aggregated sectors, could be addressed with MU-hLCA.

4.2 Application for recycled materials

4.2.1 Recycled concrete aggregate in OPC and GPC

The goal of this study is to assess the hypothetical maximum emission reduction achievable using MU-hLCA if 100% of NA (gravel) is replaced with RCA for both GPC and OPC concretes. In this study, concrete types using NA is referred to as “NA concrete,” and concrete types using RCA as a replacement for NA is referred to as “RCA concrete”. The actual amount of RCA used in Australian concrete is guided by the H155:2002 guideline (CSIRO 2002).

An environmental impact study of cradle-to-gate embodied emissions of RCA compared with NA concrete using hLCA has not yet been done. LCA studies have reported varying CFI of 320–343 kgCO₂-eq/m³ for 100% RCA concrete (Marinković et al. 2017) and 271 kgCO₂-eq/m³ for 30% RCA concrete (Kleijer et al. 2017). From this study, the CFI for 100% RCA OPC concrete in the Australian context is higher (516 kgCO₂-eq/m³) as it includes emissions from upstream processes (Fig. 8). However, side-by-side comparisons with LCA studies are difficult because there are too many different variables to be considered, such as country of study, mix proportions used for concrete, concrete strength class, RCA replacement rate, and transportation distance. The only hLCA study, of which the authors are aware, by Wijayasundara et al. (2017a) evaluated the embodied energy of RCA compared with NA concrete using IO-hLCA, and concluded that the difference is between − 1 and + 2%.

Fig. 8

CFIs of geopolymer and OPC concrete, with either natural aggregate or 100% recycled concrete aggregate

The 100% replacement of RCA for NA for both GPC and OPC concretes yields a GHGE reduction of 1%. The differences are only due to NA production, given that the compared concrete types are the same, i.e. they use equal amounts of cement. Moreover, the contribution of NA is small to begin with (2% in OPC and 4% in GPC) compared to that of other processes in the life cycle emissions of concrete production. Previous LCA studies evaluating the environmental impacts of RCA concrete compared to NA concrete have produced similar or marginally higher results. An LCA study by Kleijer et al. (2017), which compared product-specific concretes of the same strength, concluded that RCA concrete yields a 2% GHGE reduction. Braunschweig et al. (2011) and Knoeri et al. (2013) found that RCA concrete, including higher cement content, has produced similar GHGE with NA concrete using LCA. Knoeri et al. (2013) also considered the avoided impacts of C&D waste disposal and steel recycling that led to a reduction of other environmental impacts, favouring the use of RCA.

A few LCA studies established that RCA transportation types and distances influence the environmental impact of RCA concrete. Marinković et al. (2010) concluded that environmental impact of 100% RCA concrete (with some additional cement) and NA concrete are the same if the transport distance of RCA are less than that of NA, but impacts of RCA concrete are larger when their transport distances are the same. An LCA study by Shan et al. (2017) recommended the use of local (Singaporean) RCA due to the higher environmental impact from the country’s reliance on imported material, including NA. For this study, AusLCI physical data for RCA assumes that no transportation to the recycling plant is included because the end-of-waste phase is considered to be at the concrete recycling plant. For NA, the IO system uses an average distance calculation to account for local road transportation.

The versatility of MU-hLCA is demonstrated in this study by modelling RCA flows in physical units. Although GHGE reduction in RCA concrete is relatively small, using RCA has other benefits including reducing both waste being landfilled and the depletion of natural resources. A maximum potential GHGE reduction of 30% is achieved with RCA GPC compared to NA OPC concrete, as cement production is the largest contributor to environmental impact in OPC concrete. Apart from the environmental indicator, Wijayasundara et al. (2017b) and Tošić et al. (2015) conducted combined assessments to include other criteria such as social, financial and technical aspects for a more complete comparison.

4.2.2 Iron and steel scrap in EAF steel

Embodied emissions of iron and steel scrap used in BOF and EAF steel are modelled using MU-hLCA to assess the possible reductions in GHGE. Based on this, the CFI produced is 1.51 kgCO₂-eq per kg of BOF steel (Fig. 9). The largest source of GHGE is from the iron and steel manufacturing process, which accounts for 64% of total emissions. For EAF steel, the CFI produced is 0.87 kgCO₂-eq/kg (Fig. 9). Electricity generation (predominantly based on coal power in Australia) is the largest emitter in the EAF route, contributing to 35% of emissions. It is noted that this represents a cradle-to-gate analysis of producing a unit kg of crude steel, and therefore does not account for the processes thereafter to produce various finished steel products.

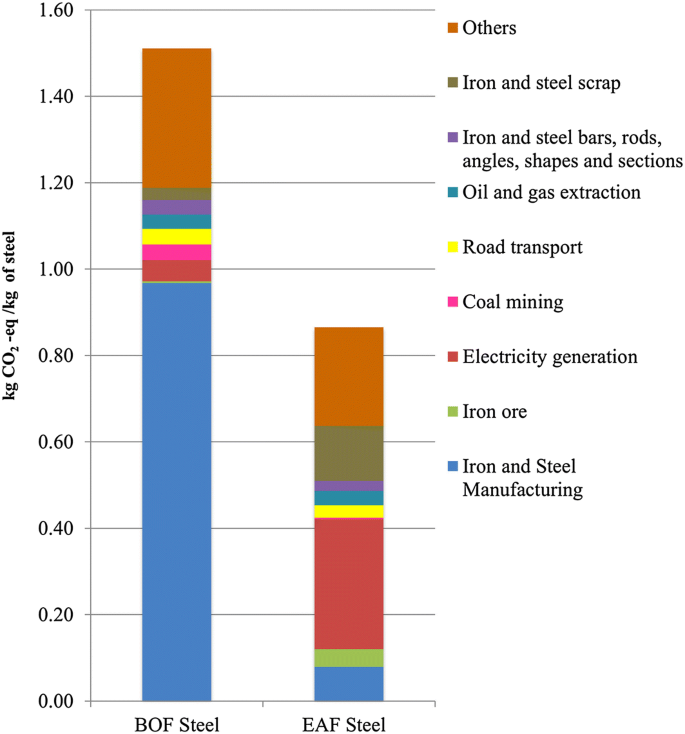

Fig. 9

CFIs of BOF and EAF steel, with the use of iron and steel scrap

In comparison, CFI in the range of 1.46–1.65 kgCO₂-eq/kg was verified by Environmental Product Declarations (EPDs) for Australian-specific steel products manufactured by BlueScope (with 25% total recycled content) via the integrated steel-making method (BF-BOF route) (Australasian EPD 2015a, b, c). These values are in line with the results produced by this study, which does not take into account the last stage of steel processing. BlueScope reported that an increase of end-of-life recycling rate from the current 89 to 100% can achieve a 12% reduction in global warming potential (GWP), and emphasised the significance of reuse and recycling (Australasian EPD 2015a, b, c). WSA (2015) reported a GHGE of 1.8–1.9 kg CO₂ per kg of crude steel cast (for 2012–2014), that reflects the sustainability performance of more than 50% of global steel production. An LCA study by Burchart-Korol (2013) provided a mass allocation breakdown of GHGE for crude steel production, and reported emissions of 1.7 kgCO₂-eq/kg for BOF steel and 0.76 kgCO₂-eq/kg for EAF steel.

The environmental benefit of scrap usage is evident in the 43% GHGE reduction via the EAF route compared with that of the BOF route (Fig. 9). According to WSA (2015), steel scrap recycling can conserve approximately 1400 kg of iron ore, 740 kg of coal, and 120 kg of limestone for every tonne of steel scrap used. In terms of energy, Yellishetty et al. (2011) described the use of iron and scrap steel as beneficial from both economic and environmental perspectives because the products have already been refined and require minimal energy for additional processing.

The proportion of EAF steel currently stands at 22.8% in Australia and has the potential to increase, considering that approximately 1.7 Mt of steel scrap is currently exported from Australia for external processing (Energetics 2012). However, the EAF route is dependent on the availability of iron and steel scrap, which can be limited due to the majority of steel remaining in use for long periods of time and some steel products are reused directly as new products without recycling or re-melting (Yellishetty et al. 2011). It should be noted that the two types of steel are not fully substitutable yet due to their difference in physical properties (Warrian 2016). However, the intention of this application study is to show that it is possible to assess the potential emission reduction using the MU-hLCA method when a recycled component is used.

5 Assumptions and limitations

Factors that influence the accuracy of the results:

• The MU-hLCA method is useful for modelling recycled and by-products when the LCI (process system) contains the recycling unit process information (including GHGE in this case), and this recycling information is either aggregated or not represented in the IO system.

• Due to the lack of Australian steel industry data, the bottom-up process data replaced in the disaggregated steel sectors in the IO system is based on Ecoinvent data employed in a study by McIlvin (2015).

• AusLCI contains verified Australian unit processes, but where data is limited, it is populated with the shadow database modified from Ecoinvent data. Whilst some energy and transport-related processes are replaced with Australian data, better analysis can be conducted when more Australian-specific data are available.

• This study only assesses GHGE (CO₂-eq) as the single indicator. Other indicators are neglected in this study, but it is important to note that other impacts of C&D recycling such as the release of other waste and the use of energy, as well as financial, social and technical implications are also important.

• The MU-hLCA method is the most advanced form of hLCA methodology, but is also known to be laborious, as well as data and time intensive. To overcome this, Crawford et al. (2017) proposed the automation of integrating IO and process data.

6 Conclusion

Recycling studies are usually assessed using LCA and are not considered in the context of the wider economy. There are inherent problems in representing waste and recycled material flows in MIOT because they are either aggregated or not included, and the market value of waste can be little to none.

In this study, the Australian economy-wide potential use of recycled construction materials is modelled via the MU-hLCA method, using a combination of LCI, IO and material flow data. By combining physical units of industrial systems representing construction and recycled materials with monetary units of the IO economic sectors, the model enables a more precise computation of embodied carbon and improves the accuracy of tracking material flows.

Using GPC as a case study, CFI results derived from MU-hLCA are 5 and 114% higher than IO-hLCA and LCA. MU-hLCA produces more accurate results as it utilises an economy-wide system boundary and Australian process-specific physical flows. Disadvantages of IO-hLCA relating to price variability, assumptions of proportionality, and homogeneity, and the aggregation of sectors could be addressed using MU-hLCA.

To demonstrate the flexibility and practicality of MU-hLCA, it is applied in case studies on recycled construction materials and by-products. By using MU-hLCA, all phases including the use, disposal and recycling stages can be represented in physical units, allowing specific products such as RCA, FA, GGBFS, NaOH, Na₂SiO₃, and iron and steel scrap to be applied in this study without altering the aggregated IOT sectors. GHGE reductions of (1) 1% is observed when 100% of RCA replace NA (gravel) in both GPC and OPC concrete, (2) 30% can potentially be achieved with RCA GPC compared to NA OPC concrete, and (3) 43% is achieved via the EAF route compared to the BOF route. A comprehensive assessment of life cycle emissions of green and alternative materials using MU-hLCA is useful to inform the policies and best practices adopted in the Australian construction industry, making it an essential tool for the successful implementation of these principles by policymakers and the government.

A method to capture the physical flows of waste and recycled materials can be done with the WIO model, provided that detailed waste data is available. Whilst MU-hLCA does the same, it is not limited to waste and recycled materials. The high resolution of LCI processes in the process system of the MU-hLCA framework allows for the flexibility of other specific products or processes (e.g. specific chemicals) to be assessed.

Another important application of MU-hLCA is in studying circular economy that promotes the sustainable concept of make-use-reuse-recycle (Stahel 2016; Weisz et al. 2015), as it enables the modelling of life cycle emissions when virgin materials are substituted by recycled materials in an economy-wide scale. Circular economy can bring substantial benefits from the environmental, social, and economic points of view, where employment, welfare and gross domestic product could be enhanced (Breene 2016; McKinsey and Company 2016). China has recently decided to disallow imports of foreign waste from countries including Australia (Lasker et al. 2017). To overcome the negative implications of this new policy and to reduce reliance on external providers of waste management services, Australia needs to harness the benefits of reusing and recycling, and reinvigorate local recycling initiatives and transition to a circular economy. MU-hLCA contributes towards the efforts of quantifying the environmental benefits of recycled materials, and can potentially analyse the socioeconomic benefits as well, provided suitable satellite data are available.

Recommendations for future research include to further explore the usefulness of the downstream cut-off matrix for economy-wide scenario analysis, and for an assessment on potential GHGE reduction in the built environment. Various products not limited to construction materials such as recycling glass, paper, plastic and metals should be explored.
