Decomposition of integrated hybrid life cycle inventories by origin and final-stage inputs


This note presents a method to decompose life cycle inventories derived from integrated and mixed-unit hybrid life cycle assessment. The approach extends the decomposition method described by Wiedmann (Econ Struct 6:11, 2017. by differentiating between impacts from industries, products and processes. The method can be used to quantify the cradle-to-sale impacts of products and processes in the final stage of manufacturing a particular product. We present such a decomposition for the example of life cycle inventories for different types of concrete and compare it to one where the life cycle inventories have been decomposed by origin.


Wiedmann (2017) established a method to decompose total impact multipliers (TIMs) in a supply-and-use table (SUT) framework so that impacts originating from industries and from products can be distinguished. In the SUT framework, the use table displays the products bought by industries and the supply table presents the products made by industries in monetary terms (Eurostat 2008). A symmetric input–output table (SIOT) converts SUTs into one single matrix that can either be a product-by-product or industry-by-industry framework. Hence, the SUT framework has the advantage of portraying differentiated industries and products, which makes possible the allocation of several products (such as co-products and by-products) to any one industry. The usefulness of this approach is enhanced if the product-level detail in the SUT is higher than the number of industry sectors. This is the case if additional original data from statistical offices are available or if additional information (e.g., specific process data) is used to disaggregate product sectors.

Hybrid life cycle assessment (hLCA) combines the comprehensiveness of input–output analysis (IOA) and the specificity of life cycle assessment (LCA) to perform environmental and sustainability analyses (Crawford et al. 2018; Kitzes 2013; Miller and Blair 2009; Nakamura and Nansai 2016). For hLCA methods such as the integrated hLCA and mixed-unit hLCA, the input–output table (IOT) is augmented to include an additional life cycle inventory (LCI) process matrix (Suh 2004; Suh and Huppes 2000). Process data are concatenated via the downstream cut-off (Cd) matrix to a SIOT or a SUT, and it is therefore desirable to be able to trace impacts originating from these processes. When the Cd matrix is employed in the integrated hybrid LCA, the results are presented as an expanded LCI for a specific product or process of impact in physical units. Integrated hLCA developed by Suh (2004) has been utilized and applied in previous research, including Bush et al. (2014), Crawford et al. (2018), Hawkins et al. (2007), Hawkins (2007), Ibn-Mohammed et al. (2016), and Wiedmann et al. (2011), but none of them have shown the explicit contribution of processes to the total hybrid LCIs.

In this note, the TIMs decomposition by industry and product method developed by Wiedmann (2017) is further adapted to allow the decomposition of LCIs by origin or final-stage inputs, in an integrated (or mixed-unit) hLCA–SUT framework. These two types of decomposition are best illustrated with an example. Cement is used as a final-stage input to produce concrete. A typical LCA question is as follows: How much impact [e.g., greenhouse gas emissions (GHGEs)] does cement contribute to the total LCI of concrete?

The LCI decomposition by final-stage inputs allocates embodied impacts of processes and products (as well as direct industry impacts) that are directly used in the final-stage inputs in the making of a product. For example, LCI impacts by final-stage inputs include products and processes (e.g., recycled concrete aggregate, transport, cement, electricity, and sand) that supply directly to the last stage of inputs of cement production to produce one unit of concrete (Fig. 1). Decomposition of LCI by final-stage inputs is the novel contribution of this note.

Fig. 1

LCI decomposition by final-stage inputs, using cement as an example for a product that is used in the final stage of producing the product for which an LCI is undertaken

The LCI decomposition by origin assigns economy-wide impacts of an industry (and process) as the ultimate origin of emissions in the making of a product. For example, the ultimate origin of concrete production arises from system-wide impacts of the cement production process. This can originate from any industry and process at any stage of the supply chain (e.g., electricity and transport) that uses cement in the life cycle of concrete (Fig. 2).

Fig. 2

LCI decomposition by origin, using the process of producing cement as an example for the ultimate origin of impacts from one particular process

An example application using concrete as a case study will be presented to compare results from the two types of decomposition. An Excel and MATLAB worked example is included in the Supplementary Information (SI), with some of the figures from the Excel sheet presented here (Additional file 1 and 2).


Integrated hybrid life cycle assessment

Integrated hLCA integrates input–output (IO) data with a full set of LCI process matrix through the upstream cut-off (Cu) and Cd matrix (Fig. 3) (Suh 2004, 2006). The IO data which can be in SIOT or SUT format will be referred to as the “IO system,” and the LCI process matrix, the “process system.” For the sake of generalization, the following exposition is based on the SUT format for IO data [from which SIOT can be derived using standard techniques; (Miller and Blair 2009, Chapter 4; Rueda-Cantuche and Raa 2007, 2009)].

Fig. 3

Integrated coefficient matrix (I − AIH) of integrated hybrid LCA (blue-shaded areas include nonzero values, but may be sparsely populated; non-shaded areas contain zeroes; gray-shaded areas represent 1s on the diagonal; pu physical units; mu monetary units)

The process system is derived from a LCI database and describes the inputs needed to produce a functional unit of product or process in physical units (pu). A process is defined as an activity that produces a functional unit that can be either a product or process (Suh 2004). The standard procedure of converting the LCI database to the process coefficient matrix \(\left( {{\mathbf{A}}_{\text{p}} } \right)\) involves normalizing the LCI database to adjust the inputs needed to produce one functional unit of output (Heijungs and Suh 2006; Suh 2004; Wiedmann et al. 2011). The same step is repeated for the associated impact satellite data to produce the impact-by-process vector \(\left( {{\mathbf{f}}_{\text{p}} } \right)\) that reflects the total direct impacts associated to produce one functional unit of output. The resultant normalized functional unit of outputs will appear as 1s on the diagonal of the process system, and the remaining entries of the process system representing inputs are further adjusted to be reflected as negative values in order to capture the flow direction of both outputs and inputs (Suh 2004).

The IO system consists of a transaction table (T matrix) that is usually published every alternate year by National Statistical Offices. The T matrix captures trades between all the industry sectors in a national economy in a given year in monetary units (mu). The IO system is prepared by deducting the technology coefficient matrix \(\left( {{\mathbf{A}}_{\text{IO}} } \right)\) by the identity matrix (I), where \({\mathbf{A}}_{\text{IO}}\) is calculated by dividing each transaction (xij) in the T matrix by the total industry output (Xj). The impact satellite data-by-industry vector is divided by total industry output to produce the DIMs vector \(\left( {{\mathbf{f}}_{\text{IO}} } \right)\) to represent the total direct impact of an industry in pu per mu (e.g., kg of CO2-eq per dollar) (Kitzes 2013; Miller and Blair 2009).

The Cu matrix complements the process system by adding any absent higher upstream monetary input data from IO flows to the process system. The Cd matrix (if present) captures the physical amount of products produced by the processes that flows into the IO system. Figure 3 presents a full framework of the (I-AIH) coefficient matrix of integrated hLCA consisting of the (I − Ap), Cu, Cd, (I − AIO) coefficient matrices and the associated process and IO impact coefficients (\({\mathbf{f}}_{\text{p}}\) and \({\mathbf{f}}_{\text{IO}}\)).

The number of rows and columns are represented by q, l, m, n in Fig. 3 and are used in equations in Sect. 2.2:

  • q the number of row(s) of environmental accounts/extensions (q = 1 in this example);

  • l the number of rows/columns in the process system (l = 8 in this example);

  • m the number of rows/columns of industry sectors in the IO system in the SUT format (m = 3 in this example);

  • n the number of rows/columns of product sectors in the IO system in the SUT format (n = 5 in this example).

Decomposition of integrated hybrid life cycle inventories

Integrated hybrid LCIs

Integrated hybrid LCIs (mIH) are derived from the well-known Leontief demand-pull calculus (Leontief 1970). The subscript IH indicates that the term includes information from both the IO and process systems. For example, the (I − AIH) component has been extended to include the process system as well as the downstream and upstream matrices as per Eq. 1 (Crawford et al. 2018; Nakamura and Nansai 2016; Suh 2004). For clarity, the (I − AIH) matrix will be referred to as the integrated coefficient matrix.

$${\mathbf{m}}_{\text{IH}} = {\mathbf{f}}_{\text{IH}} \left( {{\mathbf{I}} - {\mathbf{A}}_{\text{IH}} } \right)^{ - 1} = \left[ {\begin{array}{*{20}c} {{\mathbf{f}}_{\text{p}} } & {{\mathbf{f}}_{\text{IO}} } \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {{\mathbf{I}} - {\mathbf{A}}_{\text{p}} } & { - \;{\mathbf{C}}^{\text{d}} } \\ { - \;{\mathbf{C}}^{\text{u}} } & {{\mathbf{I}} - {\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right]^{ - 1} = \left[ {\begin{array}{*{20}c} {{\mathbf{m}}_{\text{p}} } & {{\mathbf{m}}_{\text{IO}} } \\ \end{array} } \right],$$


  • \({\mathbf{m}}_{\text{IH}}\) is the row vector of integrated hybrid life cycle inventories (results in pu/pu for dimension 1 × l and pu/mu for dimension 1 × (m + n));

  • \({\mathbf{f}}_{\text{p}}\) the row vector of process system impact coefficients (measured in pu/pu; dimension: q × l, where q = 1 in this example);

  • \({\mathbf{f}}_{\text{IO}}\) the row vector of direct intensity multipliers (DIMs) of the IO system for impacts (measured in pu/mu; dimension: q × (m + n), where q = 1 in this example);

  • \({\mathbf{I}} - {\mathbf{A}}_{\text{p}}\) the process coefficient matrix (\({\mathbf{A}}_{\text{p}}\)) deducted from the normalized functional unit matrix (I) (measured in pu/pu; dimension: l × l);

  • \(- \;{\mathbf{C}}^{\text{d}}\) the downstream cut-off matrix (measured in pu/mu: dimension: l × (m + n);

  • \(- \;{\mathbf{C}}^{\text{u}}\) the upstream cut-off matrix (measured in mu/pu; dimension (m + n) × l);

  • \({\mathbf{I}} - {\mathbf{A}}_{\text{IO}}\) the IO technology coefficient matrix (\({\mathbf{A}}_{\text{IO}}\)) deducted from the identity matrix (I) [measured in mu/mu; dimension: (m + n) × (m + n)];

  • \({\mathbf{I}} - {\mathbf{A}}_{\text{IH}}\) the integrated coefficient matrix of dimensions: (l + m+n) × (l + m+n).

The general hLCA model satisfies \({\mathbf{x}} = ({\mathbf{I}} - {\mathbf{A}}_{\text{IH}} )^{ - 1} {\mathbf{y}},\) where x and y stand for output and final demand, respectively (Eq. 2).

$$\left[ {\begin{array}{*{20}c} {{\mathbf{x}}_{\text{p}} } \\ {{\mathbf{x}}_{\text{IO}} } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {{\mathbf{I}} - {\mathbf{A}}_{\text{p}} } & { - \;{\mathbf{C}}^{\text{d}} } \\ { - \;{\mathbf{C}}^{\text{u}} } & {{\mathbf{I}} - {\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right]^{ - 1} \left[ {\begin{array}{*{20}c} {{\mathbf{y}}_{\text{p}} } \\ {{\mathbf{y}}_{\text{IO}} } \\ \end{array} } \right].$$

From this point forward, \({\mathbf{C}}^{\text{u}}\) and \({\mathbf{C}}^{\text{d}}\) are given subscripts to differentiate their matrix state, in order to better understand the decomposition equations. For instance, T matrix of \({\mathbf{C}}^{\text{u}}\) and \({\mathbf{C}}^{\text{d}}\) will be represented by \({\mathbf{C}}_{\text{T}}^{\text{u}}\) and \({\mathbf{C}}_{\text{T}}^{\text{d}}\); A matrix of \({\mathbf{C}}^{\text{u}}\) and \({\mathbf{C}}^{\text{d}}\) will be represented by \({\mathbf{C}}_{\text{A}}^{\text{u}}\) and \({\mathbf{C}}_{\text{A}}^{\text{d}}\); and (I − A) matrix of \({\mathbf{C}}^{\text{u}}\) and \({\mathbf{C}}^{\text{d}}\) will be represented by \(- \;{\mathbf{C}}_{\text{A}}^{\text{u}}\) and \(- \;{\mathbf{C}}_{\text{A}}^{\text{d}}\) (which is equivalent to \(- \;{\mathbf{C}}^{\text{u}}\) and \(- \;{\mathbf{C}}^{\text{d}} \varvec{ }\) in the literature as well as in Eqs. 1 and 2 above).

The mixed-unit coefficient matrix (AIH) is defined here for readability and application in Eqs. 5 and 6. AIH (Peters and Hertwich 2006) is calculated by deducting the integrated coefficient matrix (I − AIH) from the identity matrix (I) as shown in Eq. 3.

$${\mathbf{A}}_{\text{IH}} = {\mathbf{I}} - ({\mathbf{I}} - {\mathbf{A}}_{\text{IH}} ) = {\mathbf{I}} - \left[ {\begin{array}{*{20}c} {{\mathbf{I}} - {\mathbf{A}}_{\text{p}} } & { - \;{\mathbf{C}}_{\text{A}}^{\text{d}} } \\ { - \;{\mathbf{C}}_{\text{A}}^{\text{u}} } & {{\mathbf{I}} - {\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {{\mathbf{A}}_{\text{p}} } & {{\mathbf{C}}_{\text{A}}^{\text{d}} } \\ { {\mathbf{C}}_{\text{A}}^{\text{u}} } & {{\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right].$$

Decomposition of LCIs by origin

A decomposition of LCIs by origin is calculated with Eq. 4 (one impact at a time, because impact coefficient vectors have been diagonalized). The decomposed values reveal the ultimate origin of impacts from either industries or processes. The superscript \(\widehat{{}}\) indicates the diagonalization of the DIMs vector. Figure 4 presents an example transaction matrix utilizing a SUT framework for the IO system with environmental extensions vector.

$${\mathbf{M}}^{ori} = {\hat{\mathbf{f}}}_{\text{IH}} ({\mathbf{I}} - {\mathbf{A}}_{\text{IH}} )^{ - 1} = \left[ {\begin{array}{*{20}c} {{\hat{\mathbf{f}}}_{\text{p}} } & 0 \\ 0 & {{\hat{\mathbf{f}}}_{\text{IO}} } \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {{\mathbf{I}} - {\mathbf{A}}_{\text{p}} } & { - \;{\mathbf{C}}_{\text{A}}^{\text{d}} } \\ { - \;{\mathbf{C}}_{\text{A}}^{\text{u}} } & {{\mathbf{I}} - {\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right]^{ - 1} ,$$


Fig. 4

Example transaction matrix with eight processes, three industries and five product sectors with extensions for greenhouse gas emissions (upstream and downstream cut-off matrices are shaded in green and orange, respectively)

  • \({\mathbf{M}}^{ori}\) is the matrix of decomposition of LCIs by origin [results in a matrix with dimension: (l + m+n) × (l + m+n), which is measured in pu/pu for dimension (l + m+n) × l) and pu/mu for dimension (l + m+n) × (m + n)];

  • \({\hat{\mathbf{f}}}_{\text{p}}\) the diagonalized vector of process system impact coefficients (measured in pu/pu; dimension: l × l);

  • \({\hat{\mathbf{f}}}_{\text{IO}}\) the diagonalized vector of DIMs of the IO system for impacts [measured in pu/mu; dimension: (m + n) × (m + n)];

  • \({\mathbf{I}} - {\mathbf{A}}_{\text{p}}\) the process coefficient matrix \(\left( {{\mathbf{A}}_{\text{p}} } \right)\) deducted from the normalized functional unit matrix (I) (measured in pu/pu; dimension: l × l);

  • \(- \;{\mathbf{C}}_{\text{A}}^{\text{d}}\) the downstream cut-off coefficient matrix [measured in pu/mu; dimension: l × (m + n)];

  • \(- \;{\mathbf{C}}_{\text{A}}^{\text{u}}\) the upstream cut-off coefficient matrix (measured in mu/pu; dimension (m + n) × l);

  • \({\mathbf{I}} - {\mathbf{A}}_{\text{IO}}\) the IO technology coefficient matrix \(\left( {{\mathbf{A}}_{\text{IO}} } \right)\) deducted from the identity matrix (I) [measured in mu/mu; dimension: (m + n) × (m + n)].

The resulting LCI decomposition answers “where do emissions ultimately come from?” For example, 0.018 kg of CO2 of life cycle emissions originates from Industry A to produce a unit ($) of Product 4 (Fig. 5). This includes the direct contribution from Industry A to produce Product 4 and also the contribution from any supply chain step in the making of Product 4. The same holds true for processes. For example, electricity (Industry B, Product 2) is used to produce concrete (Product 4). The 0.131 kg/$ of life cycle emissions originates directly from the electricity industry itself as well as electricity used by any other upstream suppliers (e.g., cement, sand, transport), from any production layer of the supply chain.

Fig. 5

Example decomposition of life cycle inventories by origin (industry or process)

Decomposition of LCIs by final-stage inputs

To calculate the decomposition of integrated hybrid LCIs by the contributions from final-stage inputs, Eq. (8) from Wiedmann (2017) is now adjusted to match the integrated hLCA framework. This decomposition follows the same principle as Wiedmann (2017). Mifsi is the intermediate step matrix when decomposing LCIs by final-stage inputs.

$${\mathbf{M}}^{ifsi} = {\hat{\mathbf{f}}}_{\text{IH}} + {\hat{\mathbf{m}}}_{\text{IH}} \cdot {\mathbf{A}}_{\text{IH}} ,$$


  • \({\mathbf{M}}^{ifsi}\) is the intermediate step (i) matrix when decomposing LCIs by final-stage inputs (fsi) [results in a matrix with dimension: (l + m+n) × (l + m+n)].

As explained in Wiedmann (2017), the final-stage of inputs needed by an industry or process is expressed in the elements of the mixed-unit coefficient matrix (AIH) (Eq. 3) (Peters and Hertwich 2006). Equation 6 (rewritten from Eq. 5) shows the reworked formula to calculate the decomposition of LCIs by final-stage inputs. LCIs of the process \(\left( {{\mathbf{m}}_{\text{p}} } \right)\) and IO \(\left( {{\mathbf{m}}_{\text{IO}} } \right)\) systems are diagonalized in this equation, which is the same as the diagonalization of row vector mIH from Eq. 1.

$${\mathbf{M}}^{ifsi} = \left[ {\begin{array}{*{20}c} {{\hat{\mathbf{f}}}_{\text{p}} } & 0 \\ 0 & {{\hat{\mathbf{f}}}_{\text{IO}} } \\ \end{array} } \right] + \left[ {\begin{array}{*{20}c} {{\hat{\mathbf{m}}}_{\text{p}} } & 0 \\ 0 & {{\hat{\mathbf{m}}}_{\text{IO}} } \\ \end{array} } \right] \left[ {\begin{array}{*{20}c} {{\mathbf{A}}_{\text{p}} } & {{\mathbf{C}}_{\text{A}}^{\text{d}} } \\ { {\mathbf{C}}_{\text{A}}^{\text{u}} } & {{\mathbf{A}}_{\text{IO}} } \\ \end{array} } \right].$$

In the intermediate step in decomposition of LCIs by final-stage (Mifsi) (Fig. 6), \({\hat{\mathbf{f}}}_{\text{IH}}\) represents the direct impacts from processes or industries (also known as scope 1 emissions for the latter in terms of GHGEs) and \({\hat{\mathbf{m}}}_{\text{IH}} \cdot {\mathbf{A}}_{\text{IH}}\) represents the life cycle impacts from final-stage inputs, which takes place outside of the industry (Wiedmann 2009, 2017).

Fig. 6

Intermediate step in the decomposition of LCIs by final-stage inputs. Impacts from processes, products and industries are identified, but not yet allocated to products

The calculation of Mifsi shows product LCIs stemming from industries, but does not show impacts stemming from products and processes (Fig. 6). Scaling the decomposition of industry LCIs \(\left( {{\mathbf{M}}_{{1:\left( {l + m + n} \right),1:l + m}} ^{ifsi} } \right)\) using the technology coefficients of processes and industries \(({\mathbf{a}}_{1:l + m,k} )\) will distinguish impacts from products and processes. The scaling procedure results in displaying the contribution of all processes and industries to the production of products. This is done through Eqs. 7 and 8.

The AIH matrix has a dimension of (l + m+n) × (l + m+n). Here, the product k column from all process and industry (l + m) rows is extracted from the product (n) columns in the AIH matrix and is transposed (represented with symbol\(')\). The transposed \(\left( {{\mathbf{a}}_{1:l + m,k} } \right)\) is multiplied with the intermediate decomposition results (Mifsi) from Eq. 6, consisting of all rows and columns with the exception of product (n) columns. This procedure is summarized as Eq. 7 and results in \({\mathbf{S}}_{k}^{fsi}\) that represents a scaled matrix specifically for product k. Note that Eq. 7 is a row-wise multiplication [represented by the symbol (×)] of the transposed \(({\mathbf{a}}_{1:l + m,k } )\) with LCI columns of processes and industries,\({\mathbf{M}}_{{1:\left( {l + m + n} \right),1:l + m}} ^{ifsi}\).

$${\mathbf{S}}_{k}^{fsi} = \left( {{\mathbf{a}}_{1:l + m,k} } \right)^{ '} \times {\mathbf{M}}_{{1:\left( {l + m + n} \right),1:l + m}} ^{ifsi} ,$$


  • \({\mathbf{S}}_{k}^{fsi}\) is the scaled matrix specifically for product k [results in a matrix with dimension: (l + m+n) × (l + m)].

The results show new columns of decomposed industry LCIs that are adjusted by the technology coefficient composition of industries involved in the making of product k.

$${\mathbf{m}}_{k}^{fsi} = {\mathbf{S}}_{k}^{fsi} \cdot 1_{l + m + n,1} ,$$


  • \({\mathbf{m}}_{k}^{fsi}\) is the product k’s column of LCIs decomposed by final-stage inputs (results in a vector with dimension: (l + m+n) × 1), which will be placed in the column k of the final matrix \({\mathbf{M}}^{fsi}\);

  • \({\mathbf{M}}^{fsi}\) = final matrix when decomposing LCIs by final-stage inputs (fsi) (results in a matrix with dimension: (l + m+n) × n; measured in pu/mu).

Equation 8 represents the row summation of matrix \({\mathbf{S}}_{k}^{fsi}\), achieved via multiplication with a column vector of ones of l + m+n rows to produce a new column vector, which represents LCIs decomposed for k product and process \(\left( {{\mathbf{m}}_{k}^{fsi} } \right)\).

The calculation steps shown in Eqs. 7 and 8 are repeated for the n number of products in the IO system to produce a complete decomposition of product LCIs by final-stage inputs, and this final outcome is represented by the matrix Mfsi (Fig. 7). The columns in the matrix Mfsi comprise impacts from l rows of processes, m rows of industries and n rows of products. The impacts from industries (m rows) represent the direct impacts from sources that are owned or controlled by industries to manufacture a product, while the indirect impacts from processes and products (l and n rows) are upstream impacts covering life cycle stages from cradle-to-final-stage input to produce a product.

Fig. 7

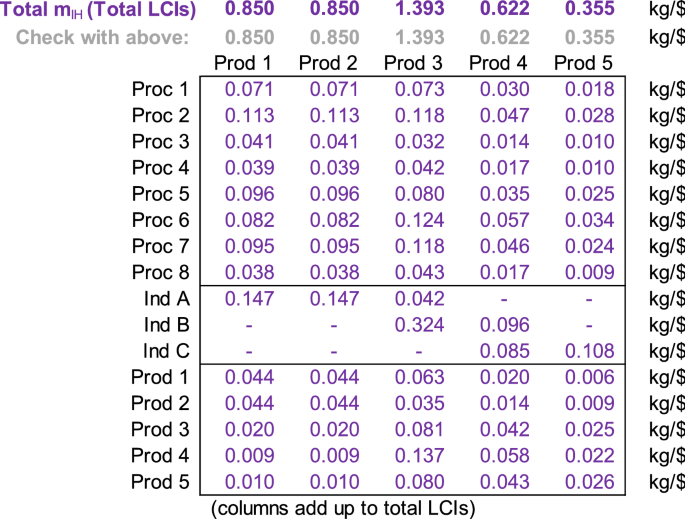

Final outcome of decomposition of LCIs by final-stage inputs, showing impacts from final-stage processes and products and direct final-stage inputs from industries to produce a product

The resulting LCI decomposition answers questions like how much life cycle impacts stem from the final-stage inputs (products, processes or direct industry impacts) in the making of a product. Following the same example of electricity as Industry B to produce concrete as Product 4, 0.096 kg/$ originates from the electricity industry (Industry B) itself to produce electricity for the direct production process, while all other contributions are life cycle emissions of processes or products used, embodying impacts from upstream cement, transport, sand, electricity, etc. For example, the 0.014 kg/$ for Product 2 (electricity) includes upstream emissions of producing the electricity for the production process of Product 4 (Fig. 7).


This section presents a case study comparing the LCIs of ordinary Portland cement (OPC) concrete with geopolymer concrete (GPC) using the two decomposition methods. Concrete is chosen as a case study because cement production is responsible for around 5–8% of global GHGEs (Flower and Sanjayan 2007). Waste and product-specific data are usually aggregated or not represented in an IOT. Integration of an LCI with the IOT in the integrated hLCA framework allows specific product or process to be employed in the assessment without entailing disaggregation of the IOT sectors, such as fly ash (FA), ground granulated blast-furnace slag (GGBFS), sodium hydroxide (NaOH), sodium silicate (Na2SiO3) and recycled concrete aggregate (RCA).

Based on the same data by Teh et al. (2017), some ingredients of OPC and GPC have been modified to utilize recycling and product-specific data from the process system (employed in pu) using the integrated hLCA method. For OPC concrete, RCA is used to replace gravel. For GPC, by-products (FA and GGBFS), specific chemical data (NaOH and Na2SiO3) and recycled product data of RCA are used to replace gravel.

The integrated hLCA model consists of a process system utilizing data from the Australian Life Cycle Inventory database (AusLCI 2015), which captures 4463 processes. The IO system is the same two-region SUT framework as utilized in Teh et al. (2017) from the Australian Industrial Ecology Virtual Laboratory (IELab) (Lenzen et al. 2014, 2017), comprising 341 industries and 345 products with a rest-of-the-world (RoW) matrix incorporating 26 sectors. The concrete sector has already been disaggregated to nine different concrete types. The Cd matrix is populated with the same physical process data from Table A.2 in the Additional file of Teh et al. (2017) for RCA (assuming the same quantity of gravel), FA, GGBFS, NaOH and Na2SiO3 for concrete types of “100% OPC 50 MPa concrete” and “90% FA/10% GGBFS Geopolymer 50 MPa concrete.” These physical process data are divided by the annual sales of functional flow to fill the Cd matrix. The Cu matrix is completely filled following the procedure from Wiedmann et al. (2011). Selected technology coefficients (AIO) of specific industries are allocated to the processes employed in Cd, adjusted via multiplication with the unit price of the processes employed for the Cu matrix. In addition, upstream inputs that are already represented in the process system are removed to avoid double counting. Taking NaOH for an example, the technology coefficient column for “Other basic chemical manufacturing” industry from the IO system is assigned to the “Sodium hydroxide, 50% in H2O, membrane cell, at plant/RER U/AusSD U” column in the Cu matrix and multiplied with the price of NaOH (0.20 AUD/kg from McLellan et al. (2011)).

Integrated hybrid LCI results are analyzed for GPC and OPC using the two decomposition methods (referred to as “by origin” and “by final-stage inputs” in figures). Results refer to the functional unit of 1 m3 of concrete. Figure 8 shows major emitting industries, products and processes to produce OPC and GPC. Contribution of cement in OPC concrete production is apparent in both decomposition methods. However, cement contribution is higher in the decomposition by final-stage inputs method because it represents the indirect emissions embodied in the cement product stemming from all upstream inputs to the final product to produce OPC concrete (shown in Fig. 1), while by origin method captures impacts stemming from all the upstream supply chains to produce OPC concrete (shown in Fig. 2).

Fig. 8

Decomposition of LCIs by origin and by final-stage inputs for ordinary Portland cement (OPC) concrete and geopolymer concrete (GPC)

Impacts from RCA in the OPC concrete could be represented in the decomposition by final-stage inputs method (Fig. 9), but could not be represented in the by origin method (Fig. 10). For GPC, decomposition of LCIs by final-stage inputs is able to capture process impact granularity by differentiating impacts stemming from RCA, FA, GGBFS, NaOH and Na2SiO3, while decomposition of LCIs by origin is not able to do so. The final-stage inputs results enable the identification of life cycle impacts of specific products such as recycled products and by-products to realize if there are environmental benefits in employing them to manufacture a construction material.

Fig. 9

Recycled concrete aggregate (RCA) contribution in the decomposition of LCIs by final-stage inputs method in the OPC concrete production

Fig. 10

Recycled concrete aggregate (RCA) contribution in the decomposition of LCIs by origin method in the OPC concrete production
